HopperPump™
Open-Throat Twin Screw Pump
The Axiflow HopperPump is designed for products that are difficult to feed into a traditional pump inlet. Its open-throat design helps move highly viscous products and mixtures containing large, delicate solids while reducing bridging and product separation.
Product Features
- Open-throat inlet for improved product feeding
- Handles highly viscous, non-flowing products
- Suitable for liquids containing large soft solids
- Helps minimize bridging and de-watering
- Gentle product handling reduces damage to delicate ingredients

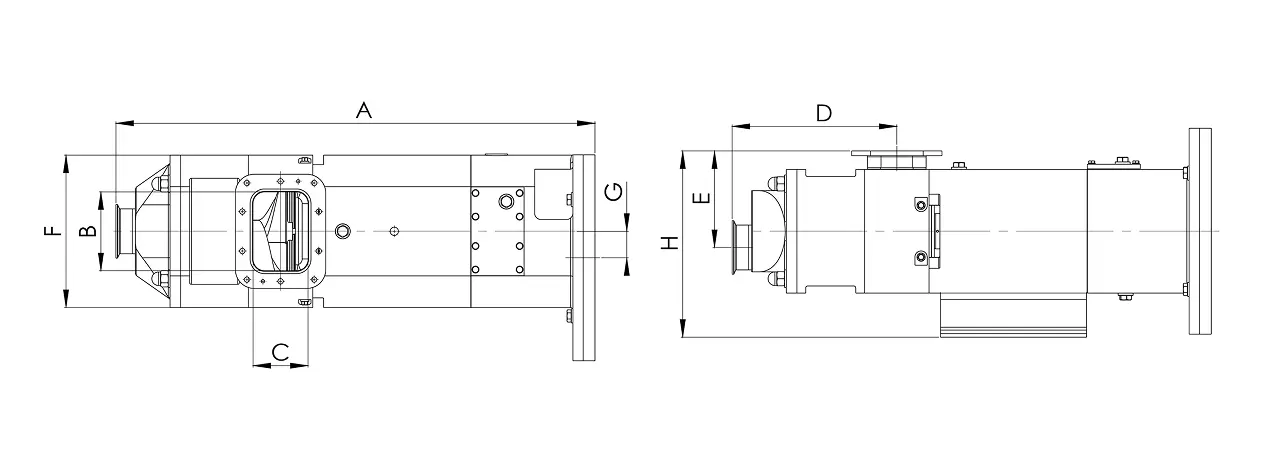

| Pump Model | Nominal Dimensions (IN) | Weight (LB) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | ||
| STSC 70H | 24.13 | 3.86 | 2.44 | 8.31 | 4.92 | 7.83 | 1.38 | 10.71 | 150 |
| STSC 90H | 32.05 | 5.28 | 3.66 | 10.94 | 6.46 | 10.20 | 1.77 | 12.48 | 335 |
| STS 125H | 41.73 | 7.17 | 4.80 | 15.51 | 7.99 | 13.74 | 2.46 | 16.50 | 825 |
NOTE: The image above is representative of the products in this series, and while we try to be as accurate as possible, the product you receive may differ slightly depending on your selection. Please refer to data sheets and technical drawings for dimensions.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
