DF Series High Pressure Twin Screw Pump
The Axiflow DF Series is designed for sanitary applications requiring high differential pressure without the pulsation commonly associated with piston-style pumps. It is particularly well suited for high-pressure-drop processes such as pasteurization and other demanding transfer applications.
Product Features
- Differential discharge pressures up to 725 PSI
- Smooth, non-pulsing product flow
- Ideal for high-pressure-drop pasteurizers
- Smaller footprint than traditional piston-style pumping systems
- Product feature itemReduced maintenance requirements compared with piston pumps

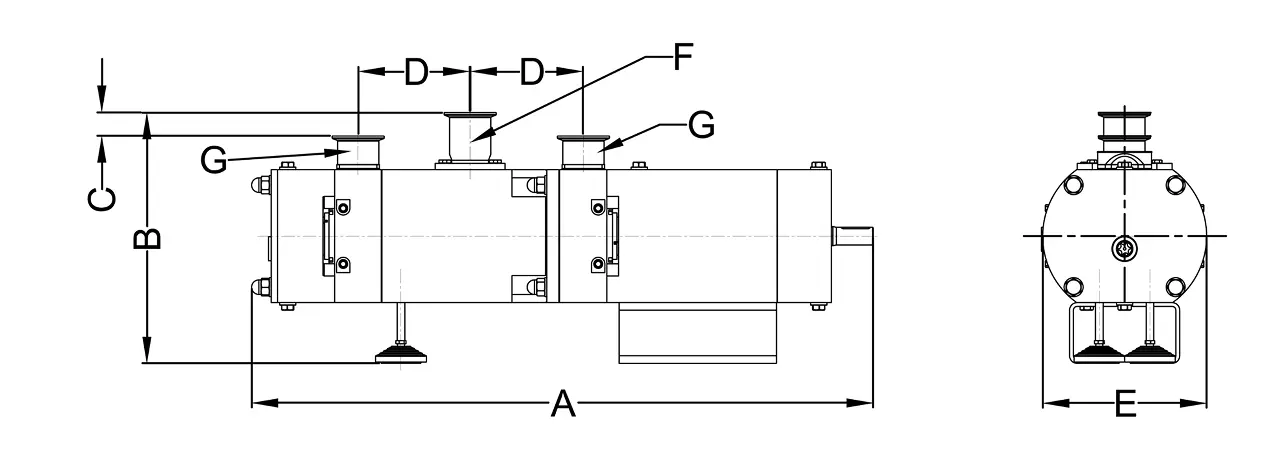

| Pump Model | Nominal Capacity (GPM) | Maximum Soft Solid Size (IN) | Nominal Dimensions (IN) | Top Connection Size | Endcover Connection Size | Endcover Connection Size | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | G | H | ||||
| STS 90DF | 4.4 – 500 | 3/4″ | 38.58 | 16.38 | 2.24 | 7.01 | 10.20 | 2″ – 2 1/2″ | 2″ – 3″ | 685 |
| STS 125DF | 50 – 1,030 | 7/8″ | 46.71 | 23.50 | 3.00 | 10.73 | 13.74 | 3″ – 4″ | 3″ – 4″ | 1,500 |
NOTE: The image above is representative of the products in this series, and while we try to be as accurate as possible, the product you receive may differ slightly depending on your selection. Please refer to data sheets and technical drawings for dimensions.
